Separate-LED RGBW StripsProduct Model No. : ST-SS-5050-RGBW

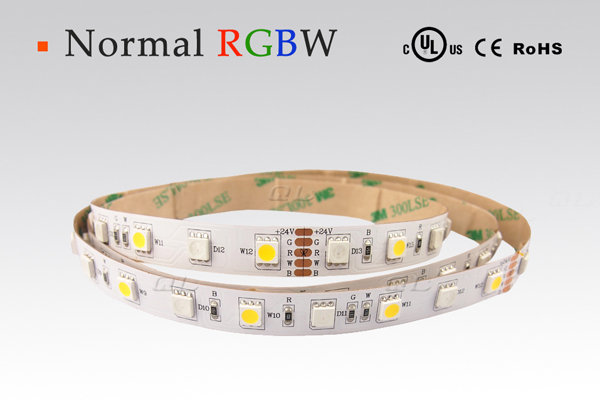

Separate-LED RGBW Strips

- LED Type: Super Quality SMD5050
- Input Voltage: DC12V/DC24V
- Color: RGB Warm White, RGB Nature White, RGB Pure White and RGB Amber
- LED Qty: 60LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP54, IP67, IP68 Version
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved

Product Model No.: ST-SS-5050-4C1-RGBWC
Features
RGBW strips, you enjoy idea white color and RGB color with one same strips
Parameters
Model No. LED
Type
LED
Qty
(m)
Work Voltage Power PCB
Size
Water
proof
Color Lumen
(lm/m)
CRI≥90 Version
ST-F5050A30SA-CP-12/24 5050 60/m DC12V
DC24V
14.4W/m 12mm IP20 R: 620-630
G: 455-470
B: 510-525
A: 585-595
PW: 6000-6500K
NW: 4000-4500K
WW: 2500-2700K
700-900
ST-F5050A30SA-CN-12/24
ST-F5050A30SA-CW-12/24
ST-F5050A30SA-CWW-12/24
Normal CRI Version
ST-F5050A30-CP-12/24 5050 60/m DC12V
DC24V
14.4W/m 12mm IP20 R: 620-630
G: 455-470
B: 510-525
A: 585-595
PW: 6000-6500K
NW: 4000-4500K
WW: 2500-2700K
700-900
ST-F5050A30-CN-12/24
ST-F5050A30-CW-12/24
ST-F5050A30-CWW-12/24
ST-F5050A30-CVW-12/24
ST-F5050A30-CY-12/24
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

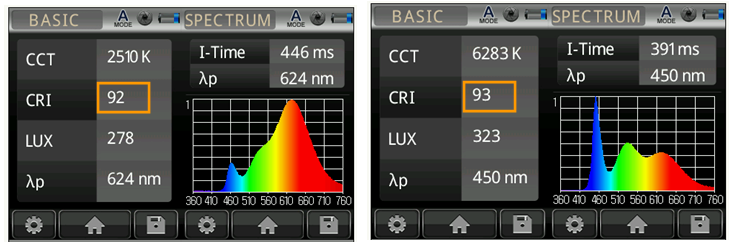

Testing Report for Color Rendering

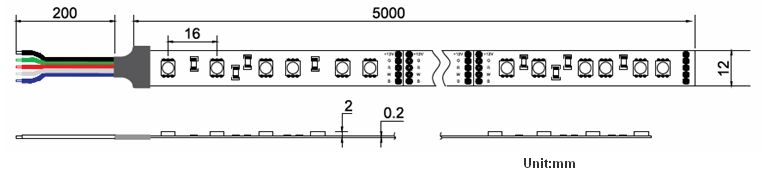

Drawings
Different Waterproof Version
Flexible LED String - 150lm/W Strip Different Versions
Packing
Flexible LED String - 150lm/W Strip Packing
