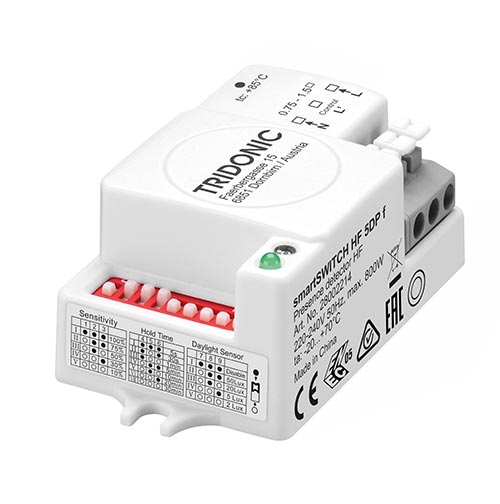

smartSWITCH HF 5DP fAutomatic switching based on motion and light level
- Item Number : ST-SA-SS-214
- Motion detector for luminaire installation
- Motion detection through glass and thin materials (except metal)
- For automatic on/off switching of electronic ballasts
- Bright-out function: luminaire is not switched on if there is adequate brightness
- Delay time, detection range and light value for the bright-out function can be set via 9 dip switches
- Max. installation height 5 m

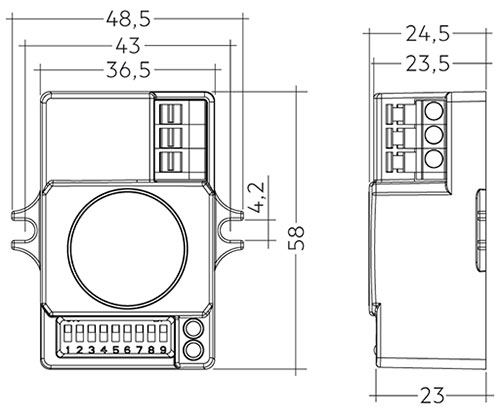

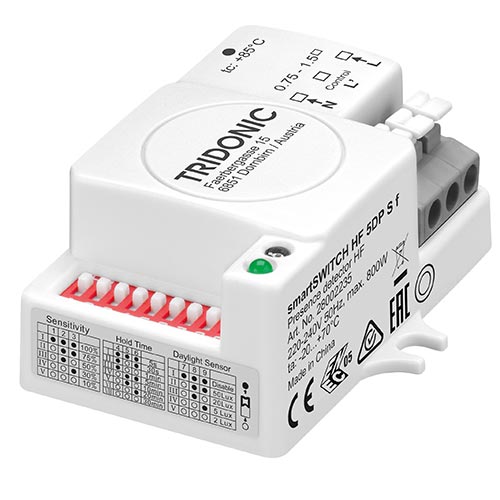

- Two housing options allowing flexible installation
- Variable detection area (100 - 10 %)
- Zero cross switching supported
- 5-year guarantee
- Rated supply voltage : 220 - 240 V
- Mains frequency : 50 Hz
- Power : < 0.5 W
- Load resistive : 800 W
- Load capacitive : 400 VA
- Detection angle : 30 - 150∘
- Max. detection area at : 3 m mounting height ∅ = 7 m
- Max. mounting height 5 m
- tc : 85 ℃
- Ambient temperature ta : -20 ... +70℃
- Storage temperature ts -20 ... +70℃
- Humidity min. : 5 % ... max. 85 % at 30℃
- Type of protection : IP20
- Protection class : Protection class II
- Housing material : PC, halogen-free
- Housing colour : RAL 9016 (white)
