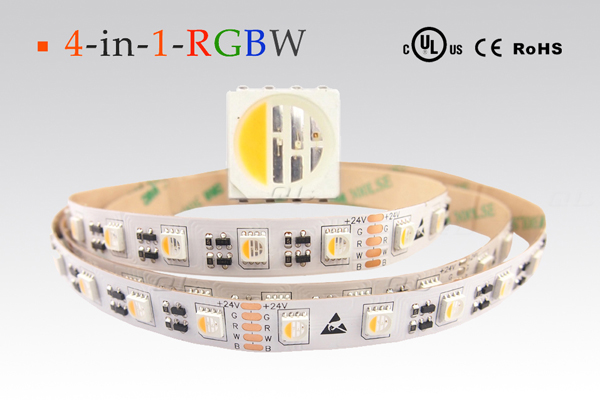

- LED Type: Super Quality SMD5050(Four Chips in one LED)
- Input Voltage: DC12V/DC24V (with temperature sensor)
- Color: RGB Warm White, RGB Nature White, RGB Pure White and RGB Amber
- LED Qty: 60LED/m, 72LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP54, IP67, IP68 Version
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved
| Model No. | LED Type |
LED Qty (m) |
Work Voltage | Power | PCB Size |
Water proof |
Color | Lumen (lm/m) |
|
| Four Chips in One LED, RGBX, Constant Current Version | |||||||||
| ST-F5050X30-CP4-24C | 5050 | 60/m | DC12V DC24V |
19.2W/m | 12mm | IP20 | R: 620-630 G: 455-470 B: 510-525 A: 585-595 PW: 6000-6500K NW: 4000-4500K WW: 2500-2700K |
1000-1100 | |
| ST-F5050X30-CN4-24C | |||||||||
| ST-F5050X30-CW4-24C | |||||||||
| ST-F5050X30-CY4-24C | |||||||||
| Four Chips in One LED, RGBX, Constant Voltage Version | |||||||||
| ST-F5050X30-CP4-12/24 | 5050 | 60/m | DC12V DC24V |
19.2W/m | 12mm | IP20 | R: 620-630 G: 455-470 B: 510-525 A: 585-595 PW: 6000-6500K NW: 4000-4500K WW: 2500-2700K |
1000-1100 | |
| ST-F5050X30-CN4-12/24 | |||||||||
| ST-F5050X30-CW4-12/24 | |||||||||
| ST-F5050X30-CY4-12/24 | |||||||||
| ST-F5050X36-CP4-12/24 | 5050 | 72/m | DC12V DC24V |
23W/m | 12mm | IP20 | R: 620-630 G: 455-470 B: 510-525 A: 585-595 PW: 6000-6500K NW: 4000-4500K WW: 2500-2700K |
1100-1200 | |
| ST-F5050X36-CN4-12/24 | |||||||||
| ST-F5050X36-CW4-12/24 | |||||||||
| ST-F5050X36-CY4-12/24 | |||||||||

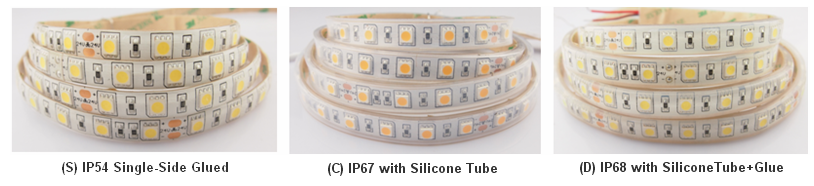

| Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue |
|||||||||
