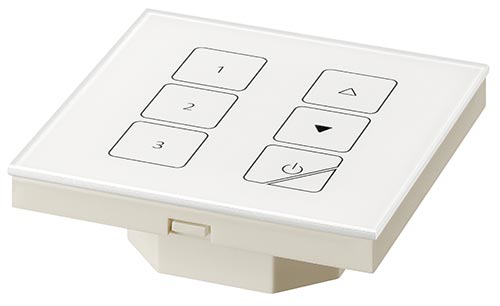

DALI Touch Panel BasicOperating and control unit


Product description
  • Item Number : ST-SA-DT-87-C
  • Capacitive Touchpanel
  • High-quality appearance with real glass display
  • Multiple control modules are possible in a DALI system
  • Power supply via DALI line
  • Double terminals for through wiring
  • Adjustment of DALI lighting group with "Group" rotary switch
  • 5-year guarantee
Type C / Type S :

Individual adjustment of start number of lighting scenes with "Scene" rotary switch

Type TW :

Tunable white (colour converter) control (colour temperature along the Planckian Locus, Colour temperature Tc)

Technical data
  • Current draw : 10 mA
  • Interface : DALI
  • Ambient temperature ta : 0 ... +50 ℃
  • Max. casing temperature tc : 60 ℃
  • Storage temperature ts : 0 ... +50 ℃
  • Humidity : 5 % ... max. 85 % (non-condensing)
  • Type of protection : IP20
  • Housing material : PC
  • Housing colour : RAL 9010 (white)
  • Installation in concealed box : ∅60 x 61 mm (∅ x H)

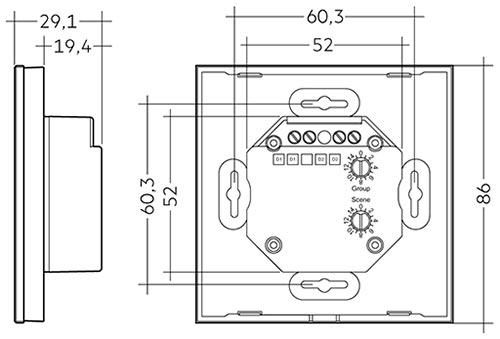

  • Dimensions L x W x H : 86 x 86 x 29.1 mm
Certifications
Type Article number Certificates
DALI TOUCHPANEL BASIC C 28001987 ENEC 11 | EU declaration of conformity
DALI TOUCHPANEL BASIC G 28001988 ENEC 11 | EU declaration of conformity
DALI TOUCHPANEL BASIC S 28001989 ENEC 11 | EU declaration of conformity
DALI TOUCHPANEL BASIC TW 28001990 ENEC 11 | EU declaration of conformity
