StarTek Products

StarBeam Panel Smart LED

StarBeam (low-glare range) is a complete luminaire with easy installation options designed for simplicity, flexibility and effectiveness. It is stylish and has a high-quality finish. Delivered in white colour or any other specified colour. Its low glare design means it is well suited for different applications such as presentation lighting, work station lighting, hotels, Conference/meeting rooms, residential, schools, workshop, warehouse, storage lighting etc.

StarBeam Panel is slim & rigid design, and can be surface mounted or suspended from ceilings. It is dimmable and has a very low glare of UGR < 19 & high CRI of > 90. The excellent glare control and high energy efficiency (150lm/W) also makes StarBeam linear good choice for most applications.

The driver can be remote or inside the luminaire and comes with a five-year warranty. The driver and the LED modules can be easily replaced, so in the long-term upgrades or modular replacement is possible without replacing the whole light fitting. Installation is easy and fast.

Main Features
  • UGR < 16, ultra low glare
  • High CRI > 90
  • Ultra High Lumen per Watt, 150lm/W
  • DALI and 1-10V dimming available
  • Installation: Pendant and surface mounted
  • Easy replacement LED and Driver modules
  • Hytronik / Tridonic Driver with flicker free, 5 Years Warranty
  • AAvailable in 30W, 40W and 60W
  • Correlated Colour Temperature (CCT) controllable (optional)
  • Compatible with motion and photo (Daylight Harvesting) sensors
Range of StarBeam Panel LED lights:
Catalogue No. Length (x) width (y) Height Wattage
StarBeam Linear (mm) (mm) (mm) Nominal wattage
SBP-6060-30W 600 600 13 30W
SBP-6060-40W 600 600 13 40W
SBP-30120-30W 300 1200 13 30W
SBP-60120-60W 600 1200 13 60W
Options and Ordering Info:
Colour Temperature: WW= 4000K (Warm White)
NW= 5000K (Neutral White)
CW= 6000K (Cool White)
Emergency: EM
Tunable White: TW
Dimming: DIM
Order Example:
Typical order example SBP-30120-30W-CW-DIM
SBP Product Category = StarBeam Panel
30120 Size = 30cm x 120cm x 13cm
30W Wattage
CW Cool White = 6000K
Dim Dimming

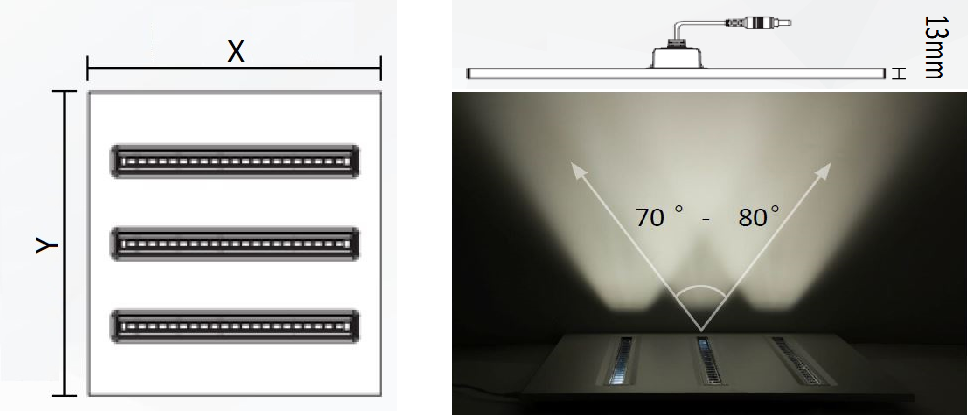

Polar Diagram exhibiting 78° - 80° beam angle

The curves indicate the illuminated area and the average illumination when the luminaire is at different distance
StarBeam Installation
