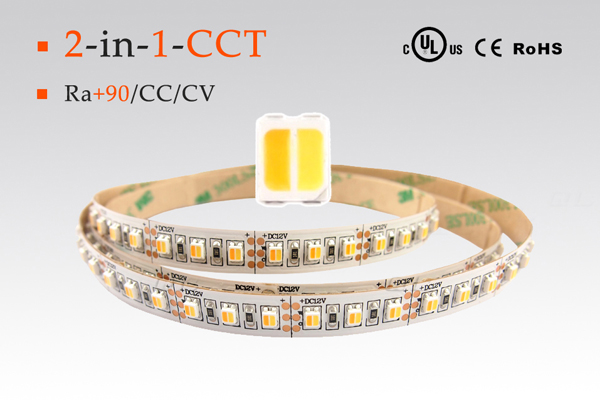

2-in-1-LED CCT StripsProduct Model No. : ST-SS-3538-2C1-CC


2-in-1-LED CCT Strips

- LED Type: CRI≥90 SMD3528 (with two chips in one LED)
- Input Voltage:DC12V/DC24V (with temperature sensor)
- Color: 2500K to 6500K adjustable
- LED Qty:60LED/m, 120LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP67 Version
- IP20: Non-waterproof Version
- IP67: With Silicone Tube
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved

Product Model No.: ST-SS-3538-2C1-CC
Features
Features of 2-Chips-in-1-LED CCT Strips:
  • With two chips in one LED. The mix color is pretty idea
    • Features of ST Temperature Sensor Constant Current Strips:
  • Constant current version: with stable current, suitable for high quality requirements project.
  • DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
  • Can work with unstable power supply and without damage.
  • with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
  • Brightness uniform: With same brightness from the first end to the last end for around 10m.
  • DC24V version: can work with DC20V to DC30V Input
  • DC 12V version: can work with DC10V to DC15V Input
    • Parameters

    Model No. LED Type LED Qty (m) Work Voltage Power PCB Size Water
    proof    		 CRI Color λ(Nm)
    /(CT:K)     		 Lumen
    (lm/m)
    CRI≥90, Constant Voltage version
    ST-F3528A60T-HA-12/24 3528 120 DC12V
    DC24V    		 19.2W/m 10mm ≥90 IP20 WW+PW 2500-6000K 1400-1500
    ST-F3528C60T-HA-12/24 IP67
    ST-F3528A30T-HA-12/24 3528 60 DC12V
    DC24V    		 9.6W/m 10mm ≥90 IP20 WW+PW 2500-6000K 700-7500
    ST-F3528C30T-HA-12/24 IP67
    CRI≥90, DC24V Input Temperature Sensor Constant Current Version
    ST-F3528A30T-HA-24C 3528 60 DC12V
    DC24V    		 9.6W/m 10mm ≥90 IP20 WW+PW 2500-6000K 700-7500
    ST-F3528C30T-HA-24C IP67
    Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

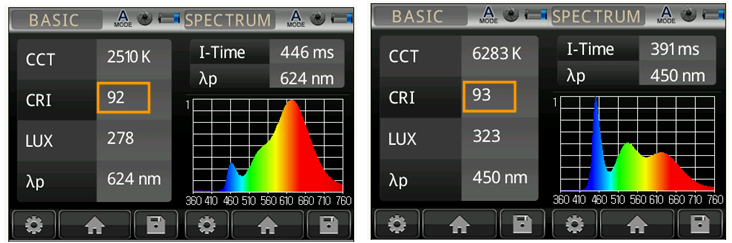

    Testing Report for Color Rendering
    Drawings

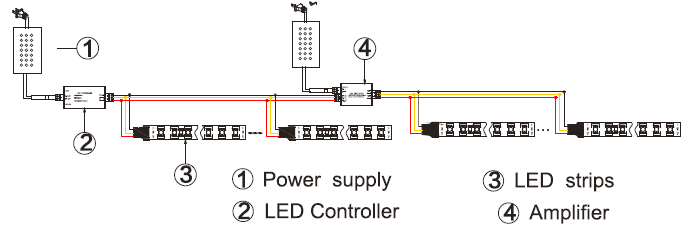

    Connections
    Different Waterproof Version
    Flexible LED String - 150lm/W Strip Different Versions
    Packing
    Flexible LED String - 150lm/W Strip Packing
