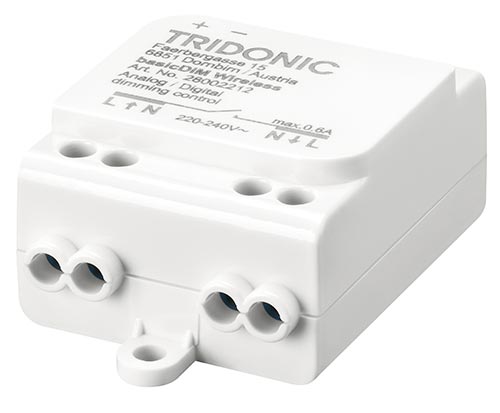

basicDIM Wireless modulexWireless module for basicDIM


Product description
  • Wireless controllable with a Android / iOS smart device
  • No need for an external gateway device
  • Forms automatically a wireless communication network with up to 127 nodes
  • Small form factor for luminaire installation
  • Configurable analog / digital output
  • Analog output: 0 - 10 V / 1 - 10 V sinking / sourcing
  • Digital output: Standalone DALI (compatible)
  • Easily implemented RGB and colour temperature controls
  • Controllable switched mains output
  • Device firmware can be updated over-the-air
  • 5-year guarantee
Technical data
  • Rated supply voltage : 220 - 240 V
  • Mains frequency : 50 / 60 Hz
  • Radio transceiver operating frequencies : 2.4 - 2.483 GHz
  • Max. output power radio transceiver : + 4 dBm
  • Bus voltage DC DALI output : 12 V
  • Shortcircuit current DALI output : 7 mA
  • Max. DALI-Verdrahtungslange : 1 m at 1 mm2 cross section
  • Ambient temperature ta : -20 ... +50 ℃
  • Max. casing temperature tc : 70 ℃
  • Storage temperature ts : -25 ... +75 ℃

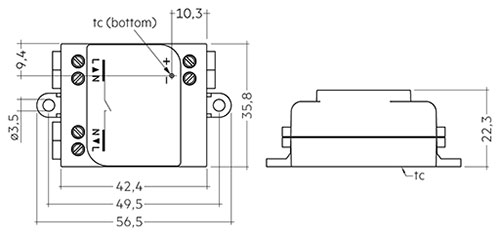

  • Dimensions L x W x H : 56.5 x 35.8 x 22.3 mm
  • Type of protection : IP20
