StarTek Products

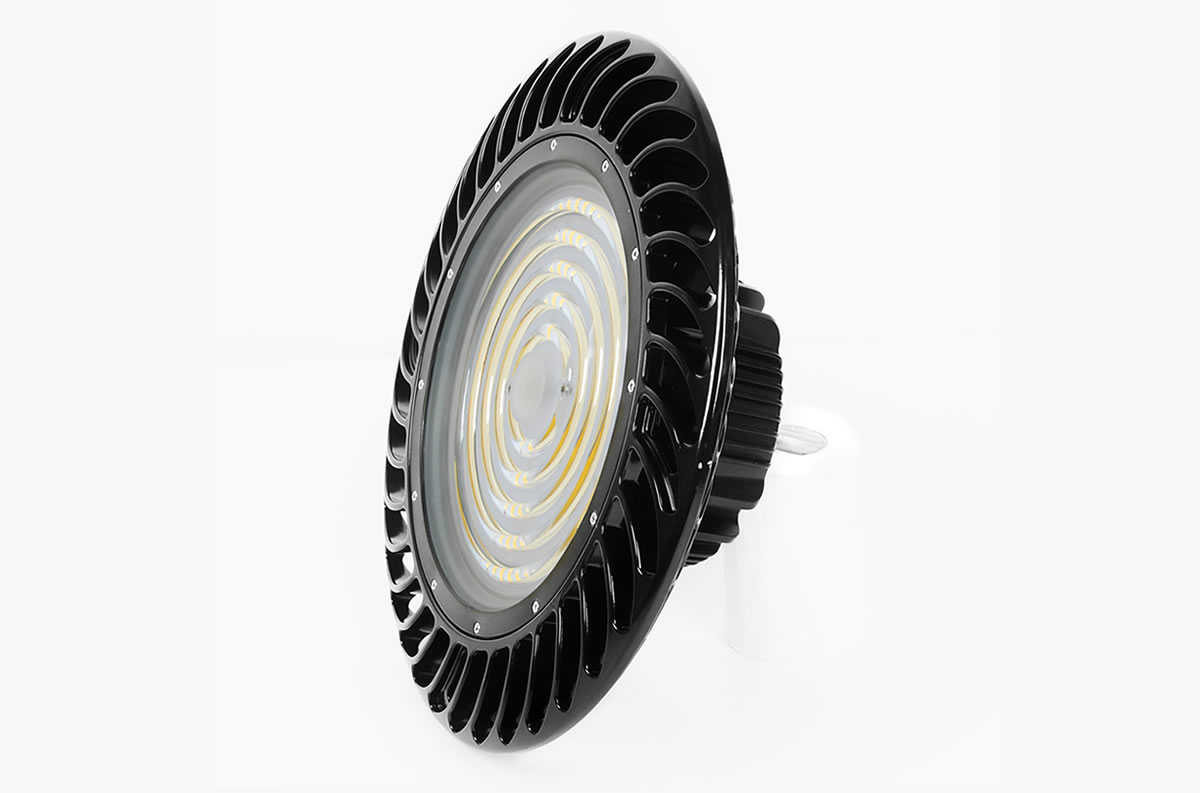

Smart UFO High Bay

High performance, energy efficient of Smart LED UFO High Bay adopts high-purity aluminium with anodic oxidation processing on its surface, which looks compact and beautiful. The unique sheet radiator design which effectively generate the heat to radiator and transfer heat by air when the LED is lighting, thereby reducing the operating temperature and ensure the 100000 hrs lifespan of LED.

Light source adopts single imported high power chip integrated style design. This design produces a high thermal conductivity, low luminous decay pure light colour output. The power supply is adopted with high efficiency, high PF power supply control system which equipped with PWM constant current and temperature compensation technology. It applies to wide input voltage (AC 100-277V), which overcomes the damage and unstable operation of the low bays due to the instability of the lighting grid and to avoid eye irritation and fatigue during working.

It reduces the energy consumption by 80% compared with incandescent, 70% compared with mercury and more than 50% compared to metal halide. It uses second distribution curve with lens and reflector to make the light curve symmetric with a circular spot.

Features of Smart UFO High Bay:
  • Air convection design, much better for heat dissipation
  • Annulus Lens. LED quantity changed according to requirements
  • High Lumen output (180lm/W)
  • Microwave or Infrared sensor optional
  • 180° adjustable bracket
  • Long life time, rated for over 55,000hrs
  • Quality Meanwell Driver
  • Waterproof IP65
Specification (Lighting Performance):
Colour Temperature 3000K, 4000K, 6000K
Lumen Output 36000lm
CRI >80
Minimum Lifetime 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Operating Details:
Power 200W (also available in 150W and 100W)
Temperature Range -40 to +50 °C
Physical Details:


Aluminum + PC
Finish Black
Ingress Protection IP65
LED Colours Warm White, Neutral White, Cold White
Optics 60° / 90° / 120°

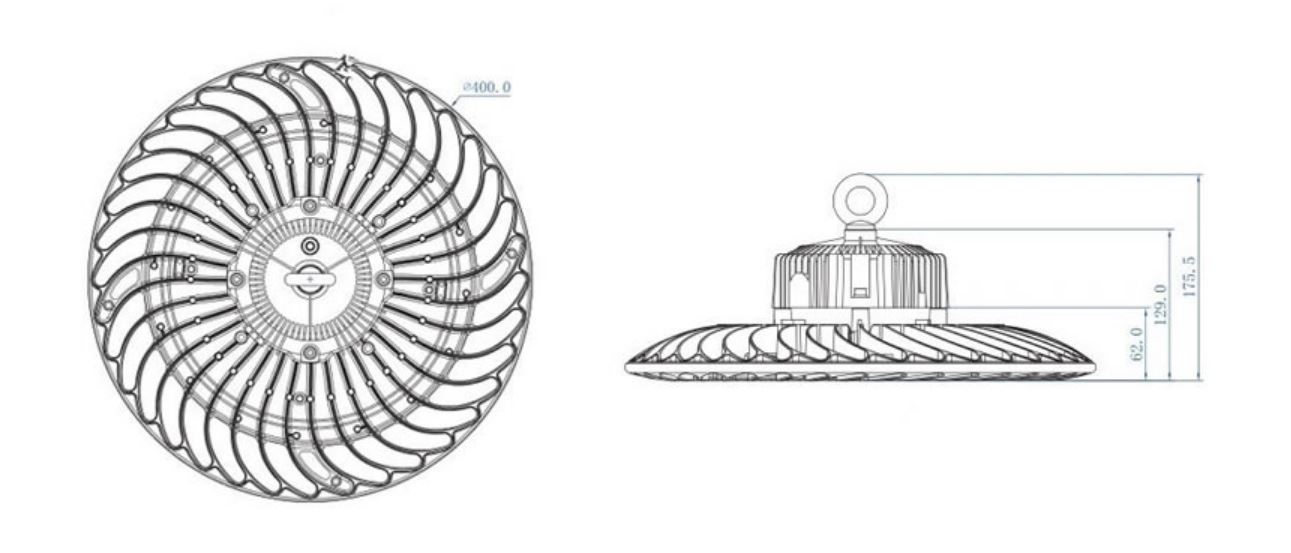

Mechanical Dimensions (Unit mm)

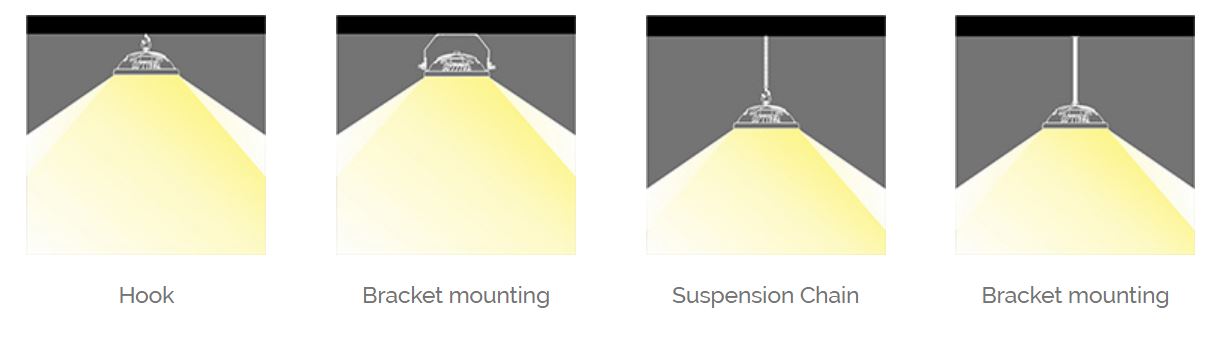

Installation Options:
