Colored S-Type LED StripsProduct Model No. : ST-SS-3528-ST

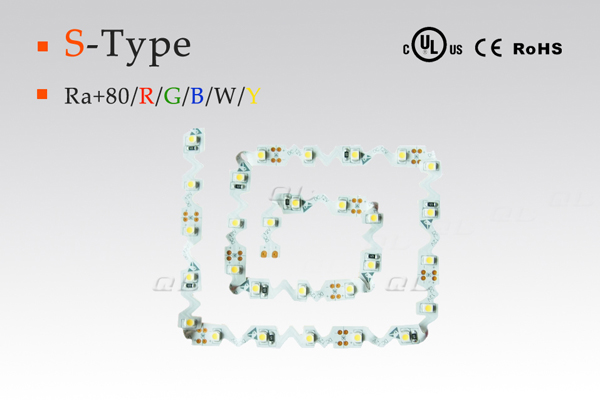

Colored S-Type LED Strips

- LED Type: CRI≥90 SMD3528
- Input Voltage:DC12V/DC24V
- Color: Warm White, Nature White, Pure White, Green, Blue
- LED Qty: 180LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP67 Version
- IP20: Non-waterproof Version
- IP67: With Silicone Tube
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved

Product Model No.: ST-SS-3528-ST
Features
Features of S-Type Strips:
  • It can be bended to be different shape. Especially suitable for signage lighting
    • Parameters

    Model No. LED
    Type    		 LED
    Qty
    (m)    		 Work Voltage Power PCB
    Size    		 Water
    proof    		 CRI Color λ(Nm)
    /(CT:K)     		 Lumen
    (lm/m)
    ST-F3528X30-P-12/24-BD 3528 60 DC12V
    DC24V    		 4.8W/m 10mm IP20
    IP54
    IP67
    IP68    		 ≥80 Pure White 6000-7000K 400-430
    ST-F3528X30-N-12/24-BD Nature White 4000-4500K 370-400
    ST-F3528X30-W-12/24-BD Warm White 3000-3500K 350-370
    ST-F3528X30-WW-12/24-BD 2500-2700K 330-350
    ST-F3528X30-VW-12/24-BD 2200-2400K 300-330
    ST-F3528X30-R-12/24-BD / Red 620-630 300-350
    ST-F3528X30-Y-12/24-BD Yellow 585-595 300-350
    ST-F3528X30-B-12/24-BD Blue 455-470 100-110
    ST-F3528X30-G-12/24-BD Green 510-525 300-350
    Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

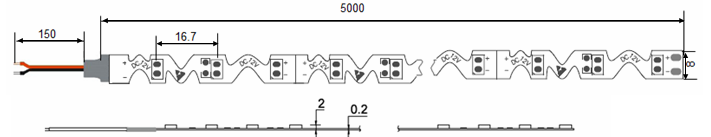

    Drawings

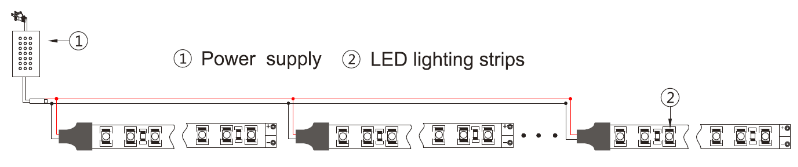

    Connections
    Different Waterproof Version
    Flexible LED String - 150lm/W Strip Different Versions
    Packing
    Flexible LED String - 150lm/W Strip Packing
