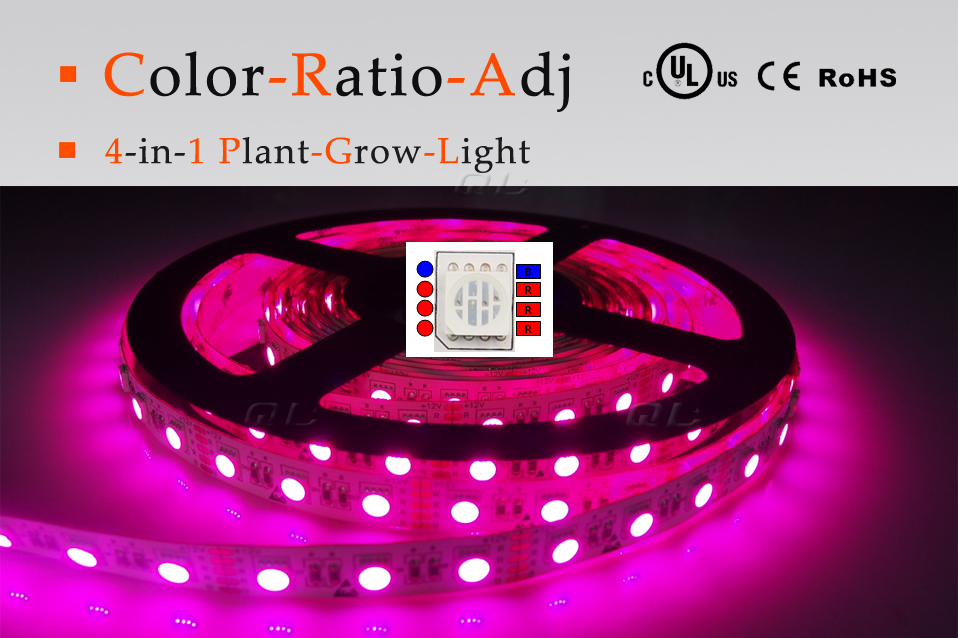

Colour Ratio Adjustable LED StripsProduct Model No. : ST-SS-5050-4C1-CC


Color Ratio Adj Plant Grow Strips

- LED Type: 4 Chips in 1 LED SMD5050
- Input Voltage: DC12V/DC24V
- Color: Grow Light
- LED Qty: 60LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP67 Version
- IP20: Non-waterproof Version
- IP67: With Silicone Tube
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved

Product Model No.: ST-SS-5050-4C1-CC
Features
The Color Ratio is adjustable
You can adjust the color ratio according to the requirements of your plants
Picture of Wave Length
Parameters
Model No. LED
Type
LED
Qty
(m)
Work Voltage Power PCB
Size
Water
proof
Color λ(Nm)
/(CT:K)
Lumen
(lm/m)
ST-F5050A30-GL4-12/24 5050 60 DC24V
DC12V
19.2W/m  12mm IP20 Plant
Grow Light
Red:660-665nm
Blue: 450-455nm
2800-3000
ST-F5050C30-GL4-12/24
IP67
3000-3100
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

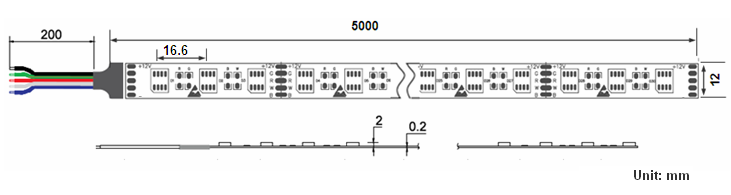

Drawings

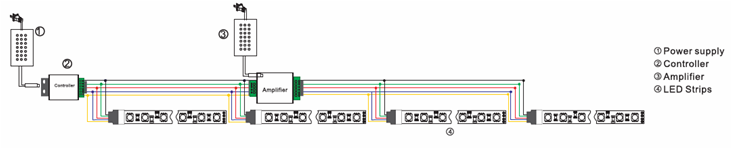

Connections

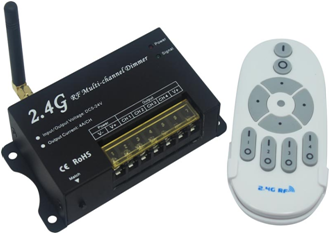

Controllers

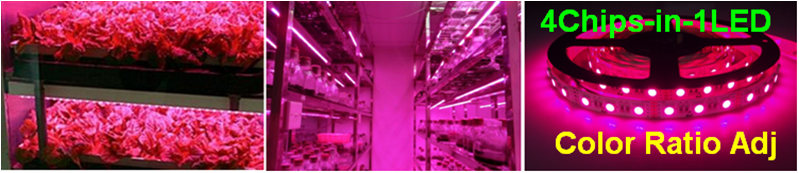

Application Picture
Different Waterproof Version
Flexible LED String - 150lm/W Strip Different Versions
Packing
Flexible LED String - 150lm/W Strip Packing
