Ra+95 3528 LED StripsProduct Model No. : ST-SS-3528-CRI95

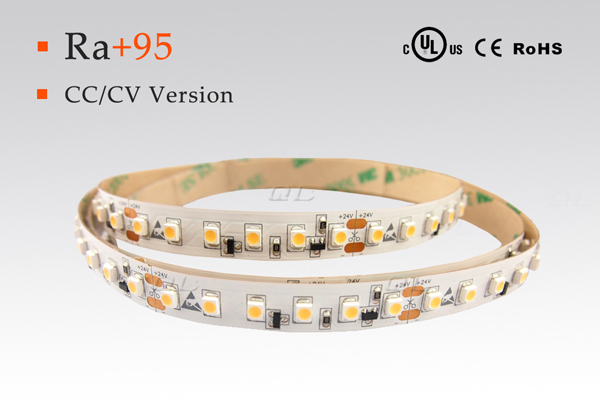

Ra+95 3528 LED Strips

- LED Type: CRI>=95 SMD3528
- Input Voltage: DC12V/DC24V (with temperature sensor)
- Color: White, Red, Green, Blue, Yellow
- LED Qty: 60LED/m, 78LED/m, 120LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP54, IP67, IP68 Version
- With 3M 300 strong adhesive tape

Product Model No.: ST-SS-3528-CRI95
Features
Features of ST Temperature Sensor Constant Current Strips:
  • Constant current version: with stable current, suitable for high quality requirements project.
  • DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
  • Can work with unstable power supply and without damage.
  • with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
  • Brightness uniform: With same brightness from the first end to the last end for around 10m.
  • DC24V version: can work with DC20V to DC30V Input
  • DC 12V version: can work with DC10V to DC15V Input
    • Parameters for CC Version
    Model No. LED Type LED Qty(m) Work Voltage Power PCB Size; Water Proof CRI Color λ(Nm)/(CT:K) Lumen lm/m)
    150lm/W, DC24V Input Temperature Sensor Constant Current Version
    ST-F3528X114SAL-P-24C-95 5630 128 DC24V 22W/m  12mm IP20
    IP67    		 ≥80 Warm White 2700-2900K 2800-3000
    ST-F3528X114SAL-N-24C-95 3000-3200K 3000-3100
    ST-F3528X114SAL-W-24C-95 Nature White 4000-4500K 3100-3200
    ST-F3528X114SAL-WW-24C-95 Pure White 6000-6500K 3200-3300
    ST-F3528X60SA-P-24C-95 5630 64 DC24V 11.5W/m 10mm IP20 IP67 ≥80 Warm White 2700-2900K 1500-1600
    ST-F3528X60SA-N-24C-95 3000-3200K 1600-1650
    ST-F3528X60SA-W-24C-95 Nature White 4000-4500K 1650-1700
    ST-F3528X60SA-WW-24C-95 Pure White 6000-6500K 1700-1750
    ST-F3528X30SA-P-24C-95 5630 32 DC24V 5.7W/m  10mm IP20
    IP67    		 ≥80 Warm White 2700-2900K 720-780
    ST-F3528X30SA-N-24C-95 3000-3200K 780-810
    ST-F3528X30SA-W-24C-95 Nature White 4000-4500K 810-840
    ST-F3528X30SA-WW-24C-95 Pure White 6000-6500K 840-860
    Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
    C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue
    Parameters for CV Version
    Model No. LED
    Type    		 LED Qty
    (m)    		 Work Voltage Power PCB
    Size    		 Water
    proof    		 CRI Color λ(Nm) /(CT:K)  Lumen (lm/m)
    CRI≥90, Constant Voltage Version
    ST-F3528X60SA-P-12/24-95 3528 120 DC12V
    DC24V    		 14.4W/m  10mm IP20
    IP54
    IP67
    IP68    		 ≥90 Pure White 6000-7000K 1200-1300
    ST-F3528X60SA-N-12/24-95 Nature White 4000-4500K 1100-1200
    ST-F3528X60SA-W-12/24-95 Warm White 3000-3500K 1000-1100
    ST-F3528X60SA-WW-12/24-95 2500-2700K 950-1000
    ST-F3528X39SA-P-12/24-95 3528 78 DC12V
    DC24V    		 9.4W/m  8mm IP20
    IP54
    IP67
    IP68    		 ≥90 Pure White 6000-7000K 800-850
    ST-F3528X39SA-N-12/24-95 Nature White 4000-4500K 750-800
    ST-F3528X39SA-W-12/24-95 Warm White 3000-3500K 700-750
    ST-F3528X39SA-WW-12/24-95 2500-2700K 650-700
    ST-F3528X30SA-P-12/24-95 3528 60 DC12V
    DC24V    		 7.2W/m  10mm IP20
    IP54
    IP67
    IP68    		 ≥90 Pure White 6000-7000K 600-650
    ST-F3528X30SA-N-12/24-95 Nature White 4000-4500K 550-600
    ST-F3528X30SA-W-12/24-95 Warm White 3000-3500K 500-550
    ST-F3528X30SA-WW-12/24-95 2500-2700K 500-530
    Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
    C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

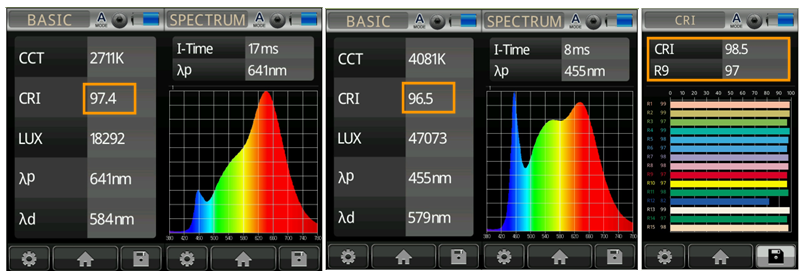

    Testing Report for Color Rendering

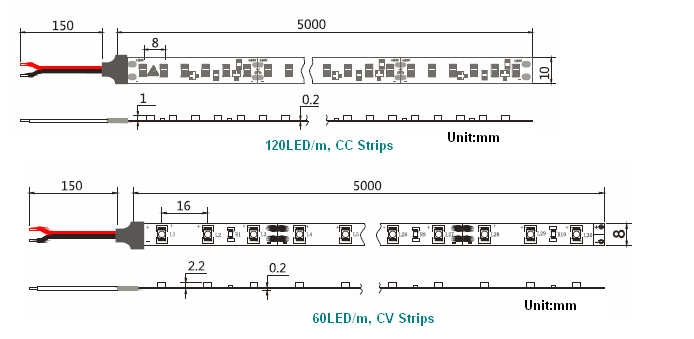

    Drawings

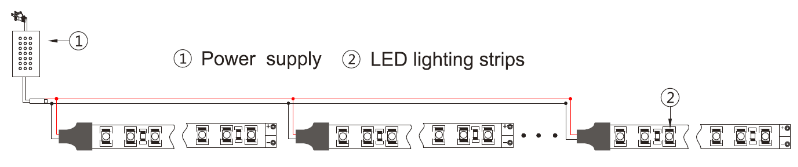

    Connections for Single colour
    Accessories
    Flexible LED String - 150lm/W Strip Accessories
    Different Waterproof Version
    Flexible LED String - 150lm/W Strip Different Versions
    Packing
    Flexible LED String - 150lm/W Strip Packing
