StarTek Products

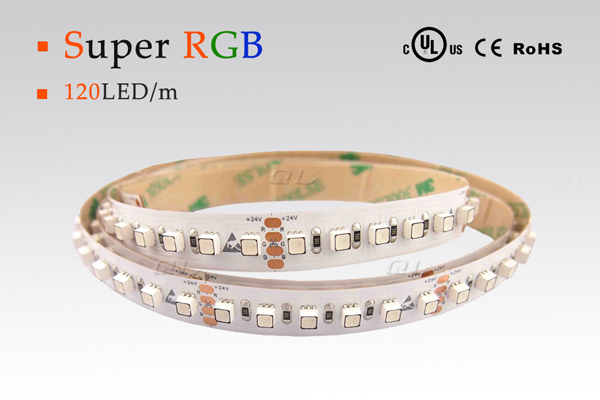

3535 RGB LED StripsProduct Model No. : ST-SS-3535-SB


3535 RGB LED Strips

- LED Type: Super Bright SMD3535
- Input Voltage: DC24V
- Color: RGB
- LED Qty: 120LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20,IP67
- With 3M 300 strong adhesive tape on

Product Model No.: ST-SS-3535-SB
Parameters for CC Version
Model No. LED Type LED Qty(m) Work Voltage Power PCB Size; Water Proof Color λ(Nm)/(CT:K) Lumen lm/m)
DC24V Input Temperature Sensor Constant Current Version
ST-F3535A60-C-24 3535 128 DC24V 28.8W/m 12mm IP20 RGB R:620-625nm 1400-1500
G:520-525nm
B:465-470nm

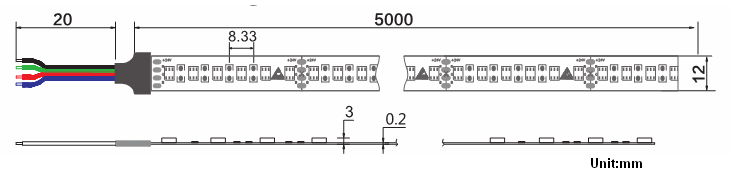

Drawings

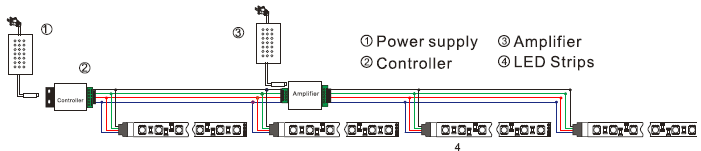

Connections for RGB-color
Accessories
Flexible LED String - 150lm/W Strip Accessories
Different Waterproof Version
Flexible LED String - 150lm/W Strip Different Versions
Packing
Flexible LED String - 150lm/W Strip Packing
