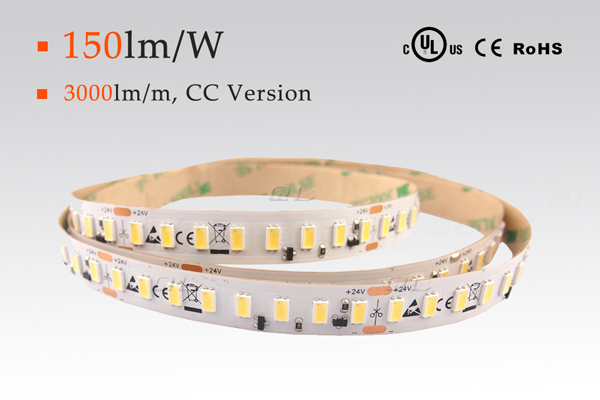

Flexible 150lm/W SMD5630 LED StripsProduct Model No. : ST-SS-5630-HB


150lm/W SMD5630 LED Strips

- LED Type: High Bright SMD5630 (150lm/W)
- Input Voltage: DC24V (with temperature sensor)
- Color: Warm White (2700K/3000K), Nature White, Pure White
- LED Qty: 32LED/m, 64LED/m, 128LED/m
- Beam Angle: 120 degree
- IP Ratio: IP20, IP67 Version
- IP20: Non-waterproof Version
- IP67: With Silicone Tube
- With 3M 300 strong adhesive tape on the backside
- UL, CUL, CE, RoHS approved

Product Model No.: ST-SS-5630-HB
Features
Features of ST Temperature Sensor Constant Current Strips:
  • Constant current version: with stable current, suitable for high quality requirements project.
  • DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
  • Can work with unstable power supply and without damage.
  • with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
  • Brightness uniform: With same brightness from the first end to the last end for around 10m.
  • DC24V version: can work with DC20V to DC30V Input
  • DC 12V version: can work with DC10V to DC15V Input
    • Parameters for CC Version
    Model No. LED Type LED Qty(m) Work Voltage Power PCB Size; Water Proof CRI Color λ(Nm)/(CT:K) Lumen lm/m)
    150lm/W, DC24V Input Temperature Sensor Constant Current Version
    ST-F5630X64-WW-24C-HE 5630 128 DC24V 22W/m  12mm IP20
    IP67    		 ≥80 Warm White 2700-2900K 2800-3000
    ST-F5630X64-W-24C-HE 3000-3200K 3000-3100
    ST-F5630X64-N-24C-HE Nature White 4000-4500K 3100-3200
    ST-F5630X64-P-24C-HE Pure White 6000-6500K 3200-3300
    ST-F5630X32-WW-24C-HE 5630 64 DC24V 11.5W/m 10mm IP20 IP67 ≥80 Warm White 2700-2900K 1500-1600
    ST-F5630X32-W-24C-HE 3000-3200K 1600-1650
    ST-F5630X32-N-24C-HE Nature White 4000-4500K 1650-1700
    ST-F5630X32-P-24C-HE Pure White 6000-6500K 1700-1750
    ST-F5630X16-WW-24C-HE 5630 32 DC24V 5.7W/m  10mm IP20
    IP67    		 ≥80 Warm White 2700-2900K 720-780
    ST-F5630X16-W-24C-HE 3000-3200K 780-810
    ST-F5630X16-N-24C-HE Nature White 4000-4500K 810-840
    ST-F5630X16-P-24C-HE Pure White 6000-6500K 840-860
    Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube
    Drawings
    Flexible LED String - 150lm/W
    Connections
    Flexible LED String - 150lm/W Strip Connections
    Accessories
    Flexible LED String - 150lm/W Strip Accessories
    Different Waterproof Version
    Flexible LED String - 150lm/W Strip Different Versions
    Packing
    Flexible LED String - 150lm/W Strip Packing
