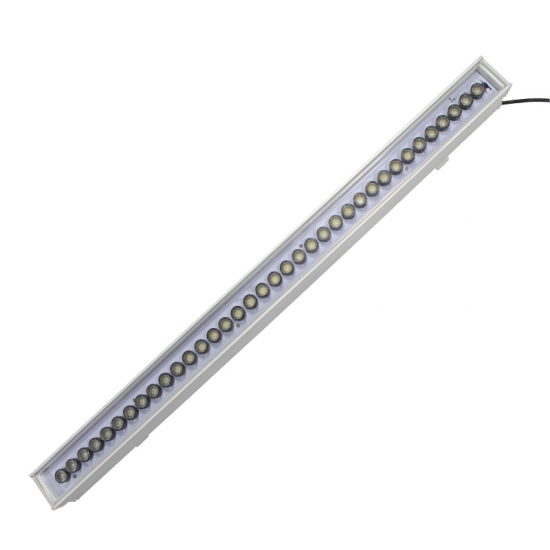

36x2W IP65 LED Wall Washer With DMX Controller


LED wall washer is also called Outdoor LED Wall Washer, LED Wall washer light, led city color, led wall washer light ,etc. All of them with with Cree & Edison high power led. The led wall wash light Working Voltage:



Product details

LED wall washer is also called Outdoor LED Wall Washer, LED Wall washer light, led city color, led wall washer light ,etc. All of them with with Cree & Edison high power led. The led wall wash light Working Voltage: DC24V, AC110V or 220V, Constant current driver, No flash, fast response to achieve over-current,use of safty. RGB DMX512(1990 standard) and RDM system. No waterproof glue to seal the light, IP65 waterproof structure. Easy maintain and replace freely.

DMX decoder built inside, can be made with plug to plug connection.To make sure of high quality for the internal control LED Wall Washer Light, we use rubble cable.

Specifications of 72W IP65 LED Wall Washer RGB DMX512 Control:

Item Number ST-WW-72W-AL-DMX-36X2
Input Voltage DC24V or AC110-240V, 50/60Hz
Input Current 320--350mA
Driver place Internal driver and DMX decoder
Output Power 72W
Luminous Flux Output 80LM/W
Rendering Index >80Ra
Body size L1000 x W68 x H80mm (H152mm with bracket)
Beam angle 10° 30° 45° 60° 90° 20*40° 10*60° 10*80° for optional
Light source High power 1W Epistar LED/CREE LED
Operating temperature -35 ∼ +45 Degrees Celsius
Storage temperature -35 ∼ +65 Degrees Celsius
Color optional White(2700-6500K), Red, Yellow, Green, Blue, RGB
Housing material 5700-6500Aluminum
LED's Operating Life ≥45,000Hours
IP rate IP65
Cable wire 1 meter 4core/5 female-male cable
RGB Control way Auto color change /DMX512 controllable
Features of 72W IP65 LED Wall Washer RGB DMX512 Control

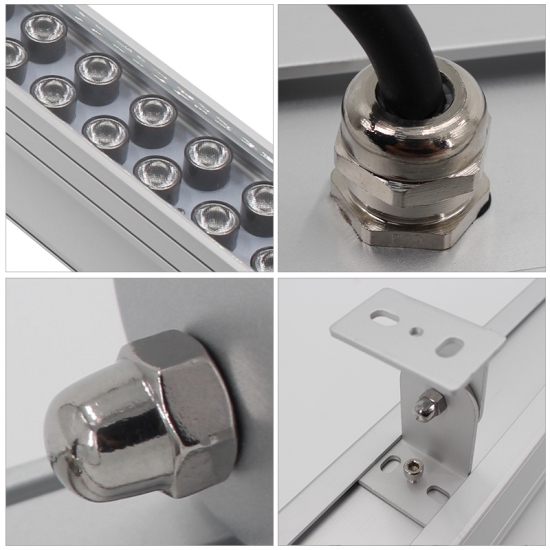

  1. High quality die-casting Aluminum light body, be oxidized beauty and good heat dispersing performance. Private mold for all lamp housing.
  2. Sealing up the tempered glass with silicone gaskets to reach IP65 waterproof rate. No waterproof glue inside of lamp. You can replace PCB with led freely once problem happened.
  3. Using super-brightness and high power led chips. Built-in constant voltage power supply driver.
  4. PMMA optical lens. with beam angle 8 -90 degrees. Achieve different floor requests.
  5. Working voltage is: DC 24V,or AC110V-240V.
  6. Single color with steady-on; Auto-control color change synchronously. DMX512 controllable system.
  7. Long life, up to 45,000 hours.
Applications for 72W IP65 LED Wall Washer RGB DMX512 Control

Apply to Building, indoor or outdoor lights, Flooding for the landscape structure to outstanding building character. Hotels, airport, Metro. etc
