Product details

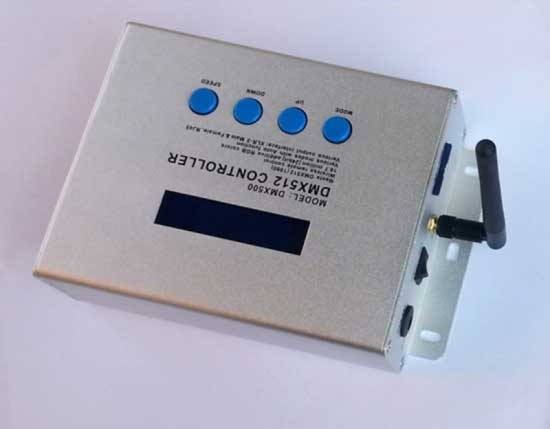

DMX500 is a full-color LED control system which fouses on indoor and outdoor decorative lighting (Including LED underwater lights, LED water fountain lights, LED Inground lights, LED wall washer lights, LED underwater lights). It comprises scene-edit software and CTL controller. You can edit various lighting effects by downloading the programme which edit according to your special requirement from your PC.This control system can fulfill 256 grey levels for each R,G,B color,totally 16.77 million real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very conveniently.There are 30 modes and 9 levels of speed you can choose, and with the pause function,you can keep the fixed color optionally.

Technical Parameters

Input Voltage	12VDC (Include 220/110VAC adaptor)
Power Consumption	<5W
Memory	32KB

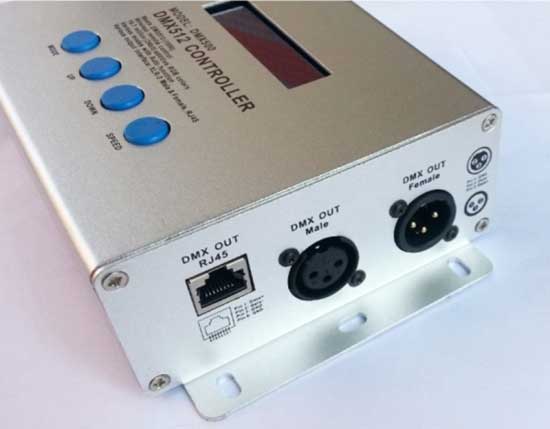

Output interface	1 x RJ45, 2 x XLR-3
Transmission interface	DMX512 (1990)
Transmition speed	250Kbps
Pixels	50 pixels, 170 pixels max
Lamp type can be	Wallwashing light, Tube light, LED under water lights, LED fountain lights, LED Inground lights
Controlled	Cube light, Underground
Control mode	Asynchronous full-color control
Remote distance	50M
Description	Fixed 30 modes, such as flash, Fade,streamy,chase, etc.

Features

1. Meets DMX512(1990)
2. Digital screen shows current status
3. 256 levels of grey, totally 16.77 million colors, really full color
4. Various modes with Pause function
5. Nine different speed level
6. Automatic parameter memory
7. Various output interface, XLR-3 Male & Female, RJ45
8. Convenient for wiring and installation
9. Good function at anti-jamming and auto-resumption.
10. SD card built-in software, easy to programming

Package

Size: 152(mm)*120(mm)*52(mm)
G.W.: 0.65 KG
N.W.: 0.8 KG

Mode 1: Fixed Red LED underwater lights Mode 2: Fixed Green LED underwater lights Mode 3: Fixed Blue LED underwater lights Mode 4: Fixed Yellow LED underwater lights Mode 5: Fixed Light Blue LED underwater lights Mode 6: Fixed Purple LED underwater lights Mode 7: Fixed White LED underwater lights Mode 8: Seven color fade LED underwater lights Mode 9: Full color fade LED underwater lights Mode 10: Rainbow changing LED underwater lights Mode 11: Water flowing LED underwater lights Mode 12: Tail Chase LED underwater lights Mode 13: Color stack LED underwater lights Mode 14: Chase(yellow,pink) LED underwater lights Mode 15: White flash LED underwater lights
